| ISO-Rang | Co% | Dichtheid (g/cm3) | Hardheid | Buigende Sterkte (N/mm2) | Korrelgrootte (μm) | |
| HV30 (kg/mm2) |
HRA (ISO3738) |
|||||
|
K05-K10
|
6 | 14.8 | 1860 | 93.5 | 3800 | <0> |
| K05-K10 | 6 | 14.9 | 1510 | 91.4 | 3000 | 1.0 |
| k20-K30 | 8 | 14.6 | 1700 | 92.7 | 3800 | 0,8 |
| K30 | 8 | 14.8 | 1300 | 89.6 | 2500 | 1.2 |
| K20-K30 | 10 | 14.5 | 1600 | 92.1 | 3800 | 0,7 |
| K20-K30 | 12 | 14.1 | 1680 | 92.6 | 3800 | <0> |
| K40 | 15 | 14 | 1330 | 90 | 3800 | 0,8 |
| K40 | 20 | 13.5 | - | 85 | 2900 | 1.2 |

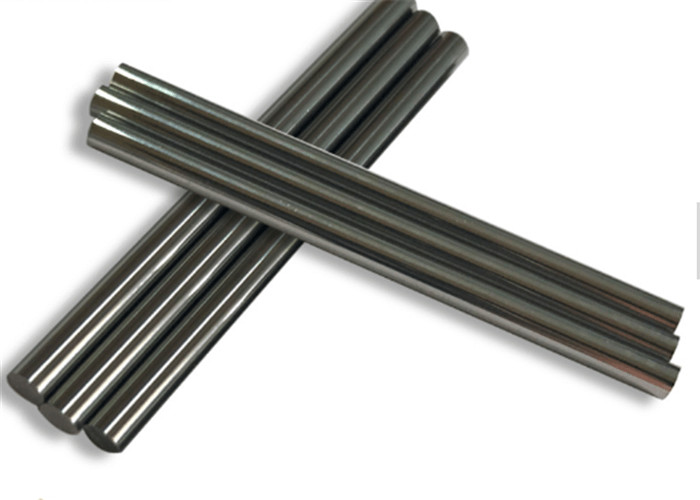

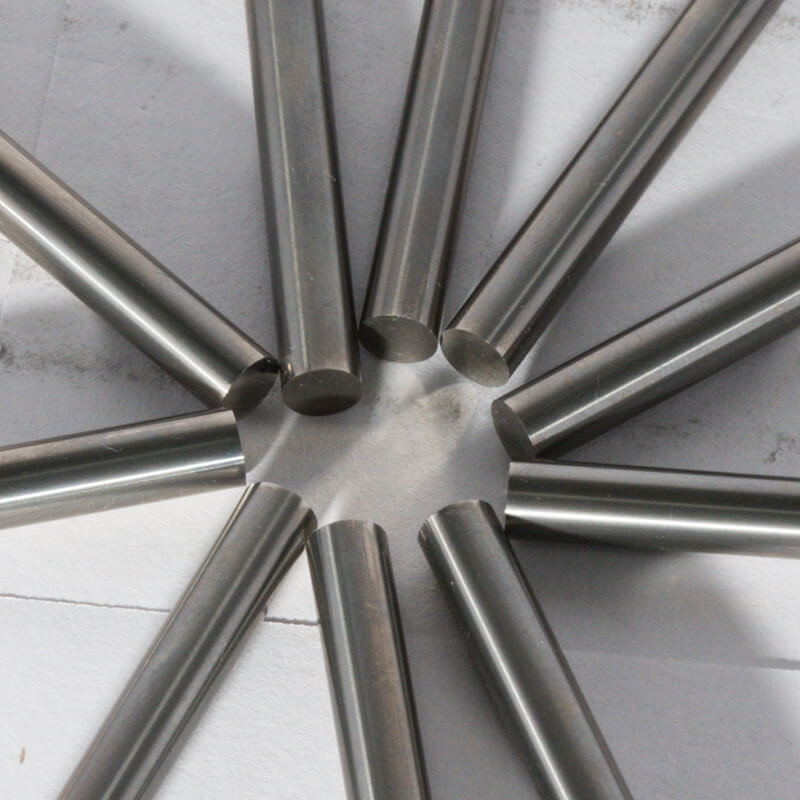

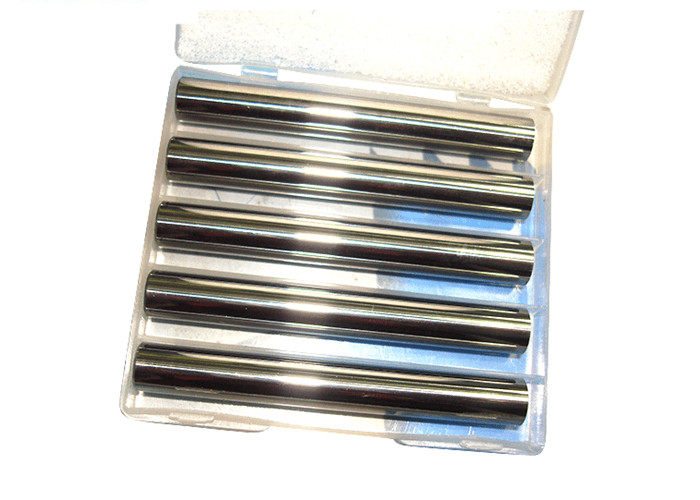

Stevige Staven (Metrische) 330mm
| Unground | h6 |
L |
Tol. |
Unground | h6 |
L |
Tol. |
||
| D | Tol. | D | Tol. | ||||||
| Ø2.2 | +0.3/+0 | 2.0 | 330 | +5/+0 | Ø17.2 | +0.3/+0 | 17 | 330 | +5/+0 |
| Ø3.2 | +0.3/+0 | 3.0 | 330 | +5/+0 | Ø18.2 | +0.3/+0 | 18 | 330 | +5/+0 |
| Ø4.2 | +0.3/+0 | 4.0 | 330 | +5/+0 | Ø19.2 | +0.3/+0 | 19 | 330 | +5/+0 |
| Ø5.2 | +0.3/+0 | 5.0 | 330 | +5/+0 | Ø20.2 | +0.3/+0 | 20 | 330 | +5/+0 |
| Ø6.2 | +0.3/+0 | 6.0 | 330 | +5/+0 | Ø21.2 | +0.3/+0 | 21 | 330 | +5/+0 |
| Ø7.2 | +0.3/+0 | 7.0 | 330 | +5/+0 | Ø22.2 | +0.3/+0 | 22 | 330 | +5/+0 |
| Ø8.2 | +0.3/+0 | 8.0 | 330 | +5/+0 | Ø23.2 | +0.3/+0 | 23 | 330 | +5/+0 |
| Ø9.2 | +0.3/+0 | 9.0 | 330 | +5/+0 | Ø24.2 | +0.3/+0 | 24 | 330 | +5/+0 |
| Ø10.2 | +0.3/+0 | 10.0 | 330 | +5/+0 | Ø25.2 | +0.3/+0 | 25 | 330 | +5/+0 |
| Ø11.2 | +0.3/+0 | 11.0 | 330 | +5/+0 | Ø26.2 | +0.3/+0 | 26 | 330 | +5/+0 |
| Ø12.2 | +0.3/+0 | 12.0 | 330 | +5/+0 | Ø27.2 | +0.3/+0 | 27 | 330 | +5/+0 |
| Ø13.2 | +0.3/+0 | 13.0 | 330 | +5/+0 | Ø28.2 | +0.3/+0 | 28 | 330 | +5/+0 |
| Ø14.2 | +0.3/+0 | 14.0 | 330 | +5/+0 | Ø29.2 | +0.3/+0 | 29 | 330 | +5/+0 |
| Ø15.2 | +0.3/+0 | 15.0 | 330 | +5/+0 | Ø30.2 | +0.3/+0 | 30 | 330 | +5/+0 |
| Ø16.2 | +0.3/+0 | 16.0 | 330 | +5/+0 | |||||
Twee rechte staven van koelmiddelenbuizen, Verminderde TK
| Unground | Grond h6 |
TK |
Tol. |
D |
Tol. |
L |
a |
|
D |
Tol. |
|||||||
| 6.3 | +0.3/0 |
6.0 | 1.5 | 0/0.20 | 0,80 | ±0.15 |
330 |
0,15 |
| 7.3 | 7.0 | 1.5 | 0,80 | 0,15 | ||||
| 8.3 | 8.0 | 2.6 | 0/0.30 |
1.00 | 0,15 | |||
| 9.3 | 9.0 | 2.6 | 1.00 | 0,20 | ||||
| 10.3 | 10.0 | 2.6 | 1.00 | 0,20 | ||||
| 11.3 | +0.4/0 |
11.0 | 3.5 | 1.20 | 0,28 | |||
| 12.3 | 12.0 | 3.5 | 1.20 | 0,30 | ||||
| 13.3 | 13.0 | 3.5 | 1.20 | 0,34 | ||||
| 14.3 | 14.0 | 5.0 | 1.50 | 0,37 | ||||
| 15.3 | 15.0 | 5.0 | 1.50 | 0,40 | ||||
| 16.3 | 16.0 | 5.0 | 1.50 | ±0.20 |
0,40 | |||
| 17.3 | +0.5/0 |
17.0 | 6.2 | 2.00 | 0,47 | |||
| 18.3 | 18.0 | 6.2 | 2.00 | 0,50 | ||||
| 19.3 | 19.0 | 6.2 | 2.00 | 0,50 | ||||
| 20.3 | 20.0 | 6.2 | 0/0.40 | 2.00 | ±0.30 | 0,50 | ||
30° twee Spiraalvormige Koelmiddelenbuizen (Type hij-30°)
| Unground | Grond h6 |
L Tol. +5.0 |
TK |
Tol. |
D |
Tol. |
Hoogte |
|
| D | Tol. | |||||||
| 6.3 | +0.4/+1.0 |
6.0 | 330 | 2.7 | ±0.2 |
0,80 | ±0.15 |
32.65 |
| 7.3 | 7.0 | 330 | 3.5 | 1.00 | 38.09 | |||
| 8.3 | 8.0 | 330 | 3.4 | 1.00 | 43.53 | |||
| 9.3 | 9.0 | 330 | 4.5 | ±0.3 | 1.40 | 48.97 | ||
| 10.3 | 10.0 | 330 | 4.8 | 1.30 | 54.41 | |||
| 11.3 | +0.4/+1.2 |
11.0 | 330 | 4.9 | ±0.4 |
1.40 | 59.86 | |
| 12.3 | 12.0 | 330 | 6.3 | 1.70 | 65.30 | |||
| 13.3 | 13.0 | 330 | 6.1 | 1.75 | ±0.20 |
70.74 | ||
| 14.3 | 14.0 | 330 | 6.7 | 1.80 | 76.18 | |||
| 15.3 | 15.0 | 330 | 7.3 | 1.75 | 81.82 | |||
| 16.3 | +0.4/+1.4 |
16.0 | 330 | 8.0 | 2.00 | 87.06 | ||
| 17.3 | 17.0 | 330 | 8.5 | 1.75 | ±0.25 |
92.50 | ||
| 18.3 | 18.0 | 330 | 9.0 | 2.30 | 97.95 | |||
| 19.3 | 19.0 | 330 | 9.7 | 2.00 | 103.39 | |||
| 20.3 | 20.0 | 330 | 10.0 | ±0.5 | 2.50 | 108.83 | ||
Toepassing: De leiding voor het maken van de beetjes van de varioiusboor, automobiele speciale snijder wordt gebruikt, drukte kringsraad, speciale snijders, motor speciale snijders, horologe, die speciale snijders, integrale verticale malensnijder, ernstiger en enz. verwerken die
Bovendien, zij kunnen voor het maken van gecementeerd carbide het stempelen hoofd, kernbar & perforatiehulpmiddelen worden gebruikt.
